This section comes together with the previous section Differential Expression. The
basic strategy singleCellTK (SCTK) uses to find biomarkers is to
iteratively identify the significantly up-regulated features of each
group of cells against all the other cells. This means, the function we
have (findMarkerDiffExp()
) is a wrapper of functions that
do differential expression (DE) analysis, which would be invoked in a
loop. For the detail of the DE functions and DE computation methods,
please refer to the Differential
Expression documentation.
To view detailed instructions on how to use these methods, please
select ‘Interactive Analysis’ for shiny application or ‘Console
Analysis’ for using these methods on R console from the tabs below:
Entry of The Panel
From anywhere of the UI, the panel for marker finding can be accessed from the top navigation panel at the circled tab shown below.
The UI is constructed in a sidebar pattern. The sidebar on the left is mainly for the parameters essential for running the marker finding algorithm. The main panel on the right is for demonstrating the results, including the marker table and the heatmap visualization.
Main Panel - Result Table
The table is shown in the figure above. In this tab, there will be a table for all the markers detected and passed the filters. It is constructed with 5 columns, including “Gene” - the default feature identifiers (not necessarily a gene ID or symbol, depending on the background SCE object); “Log2_FC”, “Pvalue” and “FDR” - the statistics that supports the detection; and the fifth one that labels which cluster the marker is for, and the column name is exactly the “cluster annotation” selected in the sidebar. Users can also download the table in comma-separated value (CSV) format, by clicking “Download Result Table” button.
Main Panel - Heatmap
A heatmap will be automatically generated after running the marker detection process. Users can tweak the options for plotting by clicking on the blue clog button on the top-left.
N
markers, as N
is the input numeric
value in the numeric input below the checkbox, for each cluster will be
plotted. The ranking is based on Log2FC value. When less than
N
markers are detected for one cluster, all of them will be
plotted.Parameters
As per SCTK’s strategy, the primary input is limited to an SingleCellExperiment (SCE) object, which has been through preprocessing steps with cluster labels annotated. While the iteration is a fixed pattern, the parameters needed are rather simple:
sce <- findMarkerDiffExp(inSCE = sce, useAssay = "logcounts", cluster = "cluster", covariates = NULL, log2fcThreshold = 0.25, fdrThreshold = 0.05)
Here all arguments execpt the input SCE object (inSCE
)
are set by default. method
can only be chosen from the
table above. cluster
and covariates
should be
given a single string which is present in
names(colData(inSCE))
. cluster
is required for
grouping cells, while covariates
is optional for DE
detection. log2fcThreshold
and fdrThreshold
are numeric and has to be set in plausible range.
log2fcThrshold
has to be positive and
fdrThreshold
has to be greater than zero and less than
one.
The returned SCE object will contain the updated information of the
markers identified in its metadata
slot.
Preprocessing
The preprocessing for obtaining cluster assignment was done using the exactly same workflow presented in the A La Carte Workflow Tutorial.
library(singleCellTK)
sce <- importExampleData("pbmc3k")
sce <- runPerCellQC(sce, mitoRef = "human", mitoIDType = "symbol", mitoGeneLocation = "rownames")
sce <- subsetSCECols(sce, colData = c('total > 600', 'detected > 300', 'mito_percent < 5'))
sce <- scaterlogNormCounts(sce, useAssay = "counts", assayName = "logcounts")
sce <- runModelGeneVar(sce, useAssay = "logcounts")
sce <- setTopHVG(sce, method = "modelGeneVar")
sce <- scaterPCA(inSCE = sce, useAssay = "logcounts", useFeatureSubset = "HVG_modelGeneVar2000",
reducedDimName = "PCA", seed = 12345)
sce <- runScranSNN(sce, useReducedDim = "PCA", nComp = 10, k = 14,
weightType = "jaccard", clusterName = "cluster", seed = 12345)
sce <- getUMAP(sce, useReducedDim = "PCA", initialDims = 10, reducedDimName = "UMAP", seed = 12345)

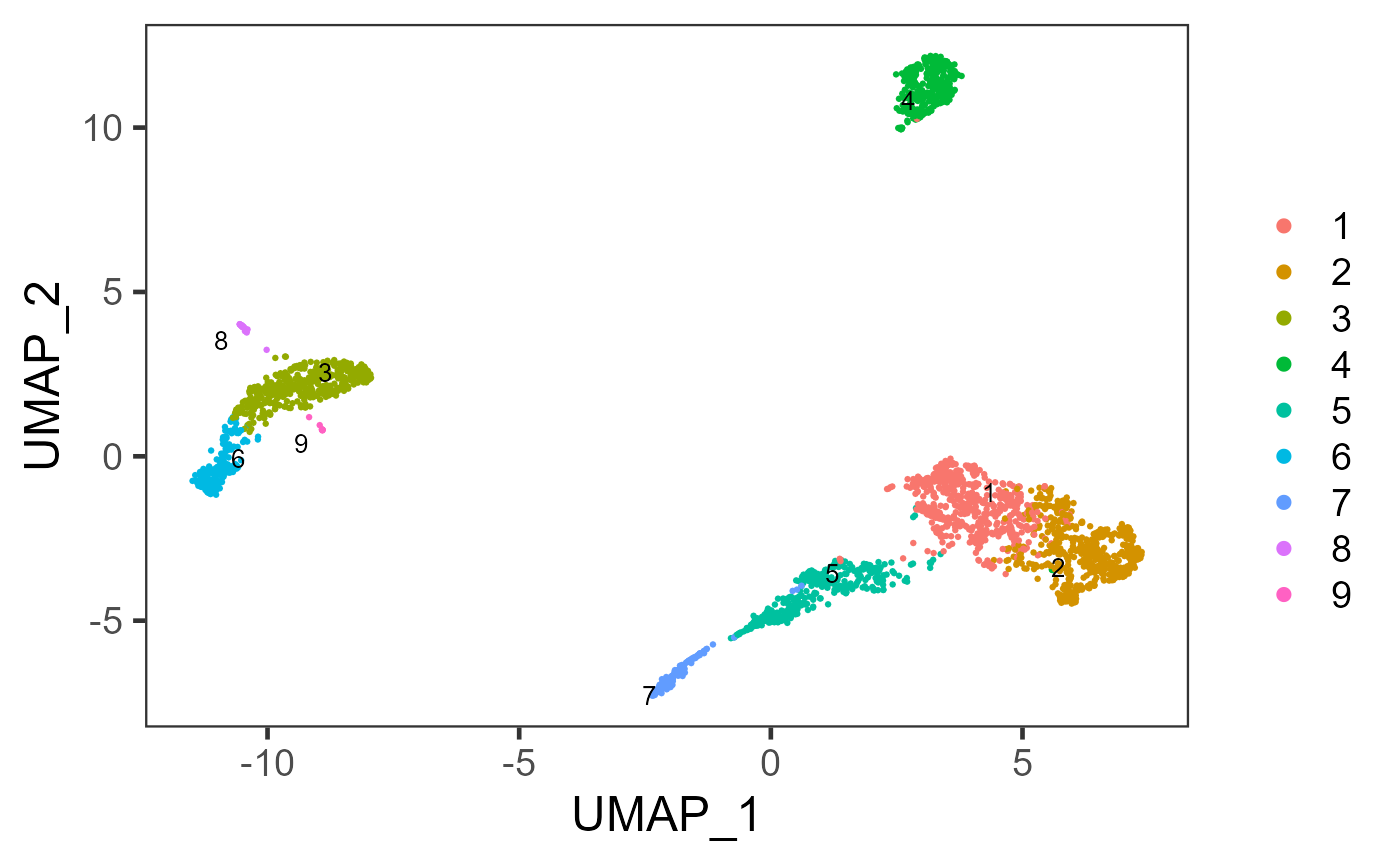

And we can visualize the cell populations on the UMAP with cluster labeled.
plotSCEDimReduceColData(sce, colorBy = "cluster", reducedDimName = "UMAP")
Get Markers
Then we call findMarkerDiffExp()
on the clustered data,
with the cluster annotation just obtained, "cluster"
.
sce <- findMarkerDiffExp(inSCE = sce, useAssay = "logcounts", cluster = "cluster")
Results
After successfully running findMarkerDiffExp()
, the
result marker table would be stored in metadata(sce)
. This
table can be fetched by findMarkerTopTable()
. Argument
topN
controls how many top markers, that pass filters, to
include for each clsuter.
findMarkerTopTable(sce, log2fcThreshold = 0, minClustExprPerc = 0.5, topN = 1)
## Gene Log2_FC Pvalue FDR cluster clusterExprPerc
## 8764 IL7R 0.8117772 9.627633e-63 5.253157e-59 1 0.7500000
## 309761 NOSIP 0.5887454 1.941718e-38 6.553399e-36 2 0.6821561
## 1956 S100A9 4.3853548 2.397248e-207 3.924055e-203 3 0.9977064
## 30657 CD79A 2.2532545 1.452148e-151 1.188511e-147 4 0.9257143
## 26825 CCL5 3.0924934 1.691729e-148 5.538382e-144 5 0.9712644
## 106091 LST1 2.8683989 1.038405e-98 1.133177e-94 6 1.0000000
## 310761 NKG7 4.2398710 3.256027e-82 1.065958e-77 7 1.0000000
## 288182 CST3 3.2975861 2.221917e-16 1.039159e-12 8 1.0000000
## 7697 PPBP 5.9620589 9.423341e-07 2.504757e-03 9 1.0000000
## ControlExprPerc clusterAveExpr
## 8764 0.31156265 1.266208
## 309761 0.36716132 1.069871
## 1956 0.23094477 4.733569
## 30657 0.04172156 2.296094
## 26825 0.21676174 3.470436
## 106091 0.30477759 3.454109
## 310761 0.25687702 4.781861
## 288182 0.39113680 4.371755
## 7697 0.02406417 5.989445
Similarly to the Differential Expression section, we also provide a automated and organized heatmap plotting for the markers:
plotMarkerDiffExp(sce, log2fcThreshold = 0, minClustExprPerc = 0.5, maxCtrlExprPerc = 0.5, rowLabel = TRUE)
Note that when plotting the heatmap, the genes that are identified as
up-regulated in multiple clusters will be considered only for the one
cluster with the highest fold-change, while all of them are still kept
in the table in metadata
.
