Plotting feature expression on a dimension reduction plot

Create a scatterplot for each row of a normalized gene expression matrix where x and y axis are from a data dimension reduction tool. The cells are colored by expression of the specified feature.

plotDimReduceFeature(
  x,
  features,
  reducedDimName = NULL,
  displayName = NULL,
  dim1 = NULL,
  dim2 = NULL,
  headers = NULL,
  useAssay = "counts",
  altExpName = "featureSubset",
  normalize = FALSE,
  zscore = TRUE,
  exactMatch = TRUE,
  trim = c(-2, 2),
  limits = c(-2, 2),
  size = 0.5,
  xlab = NULL,
  ylab = NULL,
  colorLow = "blue4",
  colorMid = "grey90",
  colorHigh = "firebrick1",
  midpoint = 0,
  ncol = NULL,
  decreasing = FALSE
)

# S4 method for SingleCellExperiment
plotDimReduceFeature(
  x,
  features,
  reducedDimName = NULL,
  displayName = NULL,
  dim1 = 1,
  dim2 = 2,
  headers = NULL,
  useAssay = "counts",
  altExpName = "featureSubset",
  normalize = FALSE,
  zscore = TRUE,
  exactMatch = TRUE,
  trim = c(-2, 2),
  limits = c(-2, 2),
  size = 0.5,
  xlab = NULL,
  ylab = NULL,
  colorLow = "blue4",
  colorMid = "grey90",
  colorHigh = "firebrick1",
  midpoint = 0,
  ncol = NULL,
  decreasing = FALSE
)

# S4 method for ANY
plotDimReduceFeature(
  x,
  features,
  dim1,
  dim2,
  headers = NULL,
  normalize = FALSE,
  zscore = TRUE,
  exactMatch = TRUE,
  trim = c(-2, 2),
  limits = c(-2, 2),
  size = 0.5,
  xlab = "Dimension_1",
  ylab = "Dimension_2",
  colorLow = "blue4",
  colorMid = "grey90",
  colorHigh = "firebrick1",
  midpoint = 0,
  ncol = NULL,
  decreasing = FALSE
)

Arguments

x	Numeric matrix or a SingleCellExperiment object with the matrix located in the assay slot under `useAssay`. Rows represent features and columns represent cells.
features	Character vector. Features in the rownames of counts to plot.
reducedDimName	The name of the dimension reduction slot in `reducedDimNames(x)` if `x` is a SingleCellExperiment object. If `NULL`, then both `dim1` and `dim2` need to be set. Default `NULL`.
displayName	Character. The column name of `rowData(x)` that specifies the display names for the features. Default `NULL`, which displays the row names. Only works if `x` is a SingleCellExperiment object. Overwrites `headers`.
dim1	Integer or numeric vector. If `reducedDimName` is supplied, then, this will be used as an index to determine which dimension will be plotted on the x-axis. If `reducedDimName` is not supplied, then this should be a vector which will be plotted on the x-axis. Default `1`.
dim2	Integer or numeric vector. If `reducedDimName` is supplied, then, this will be used as an index to determine which dimension will be plotted on the y-axis. If `reducedDimName` is not supplied, then this should be a vector which will be plotted on the y-axis. Default `2`.
headers	Character vector. If `NULL`, the corresponding rownames are used as labels. Otherwise, these headers are used to label the features. Only works if `displayName` is `NULL` and `exactMatch` is `FALSE`.
useAssay	A string specifying which assay slot to use if `x` is a SingleCellExperiment object. Default "counts".
altExpName	The name for the altExp slot to use. Default "featureSubset".
normalize	Logical. Whether to normalize the columns of `counts`. Default `FALSE`.
zscore	Logical. Whether to scale each feature to have a mean 0 and standard deviation of 1. Default `TRUE`.
exactMatch	Logical. Whether an exact match or a partial match using `grep()` is used to look up the feature in the rownames of the counts matrix. Default TRUE.
trim	Numeric vector. Vector of length two that specifies the lower and upper bounds for the data. This threshold is applied after row scaling. Set to NULL to disable. Default `c(-1,1)`.
limits	Passed to scale_colour_gradient2. The range of color scale.
size	Numeric. Sets size of point on plot. Default 1.
xlab	Character vector. Label for the x-axis. If `reducedDimName` is used, then this will be set to the column name of the first dimension of that object. Default "Dimension_1".
ylab	Character vector. Label for the y-axis. If `reducedDimName` is used, then this will be set to the column name of the second dimension of that object. Default "Dimension_2".
colorLow	Character. A color available from `colors()`. The color will be used to signify the lowest values on the scale.
colorMid	Character. A color available from `colors()`. The color will be used to signify the midpoint on the scale.
colorHigh	Character. A color available from `colors()`. The color will be used to signify the highest values on the scale.
midpoint	Numeric. The value indicating the midpoint of the diverging color scheme. If `NULL`, defaults to the mean with 10 percent of values trimmed. Default `0`.
ncol	Integer. Passed to facet_wrap. Specify the number of columns for facet wrap.
decreasing	logical. Specifies the order of plotting the points. If `FALSE`, the points will be plotted in increasing order where the points with largest values will be on top. `TRUE` otherwise. If `NULL`, no sorting is performed. Points will be plotted in their current order in `x`. Default `FALSE`.

Value

The plot as a ggplot object

Examples

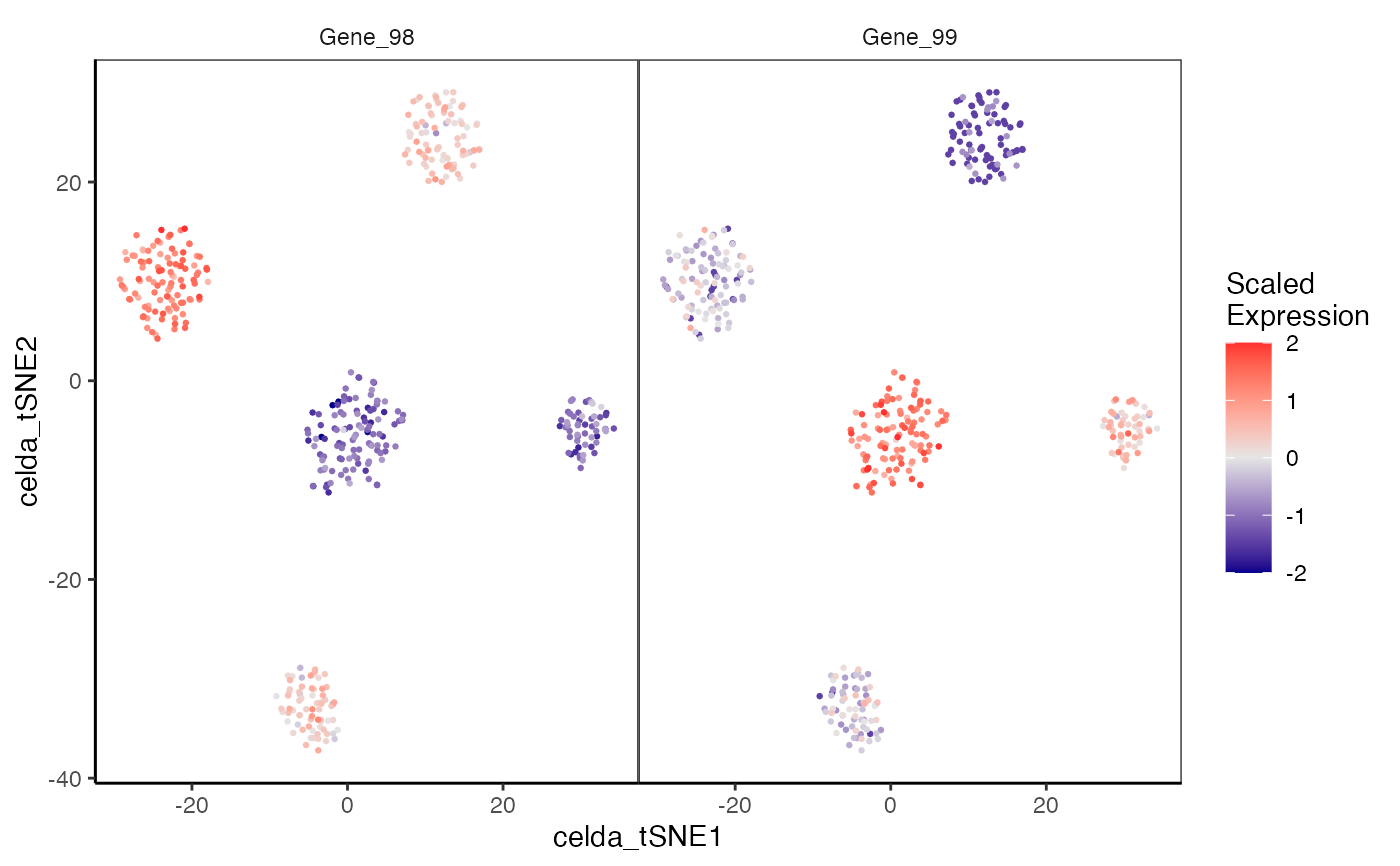

data(sceCeldaCG)
sce <- celdaTsne(sceCeldaCG)
plotDimReduceFeature(x = sce,
  reducedDimName = "celda_tSNE",
  normalize = TRUE,
  features = c("Gene_98", "Gene_99"),
  exactMatch = TRUE)

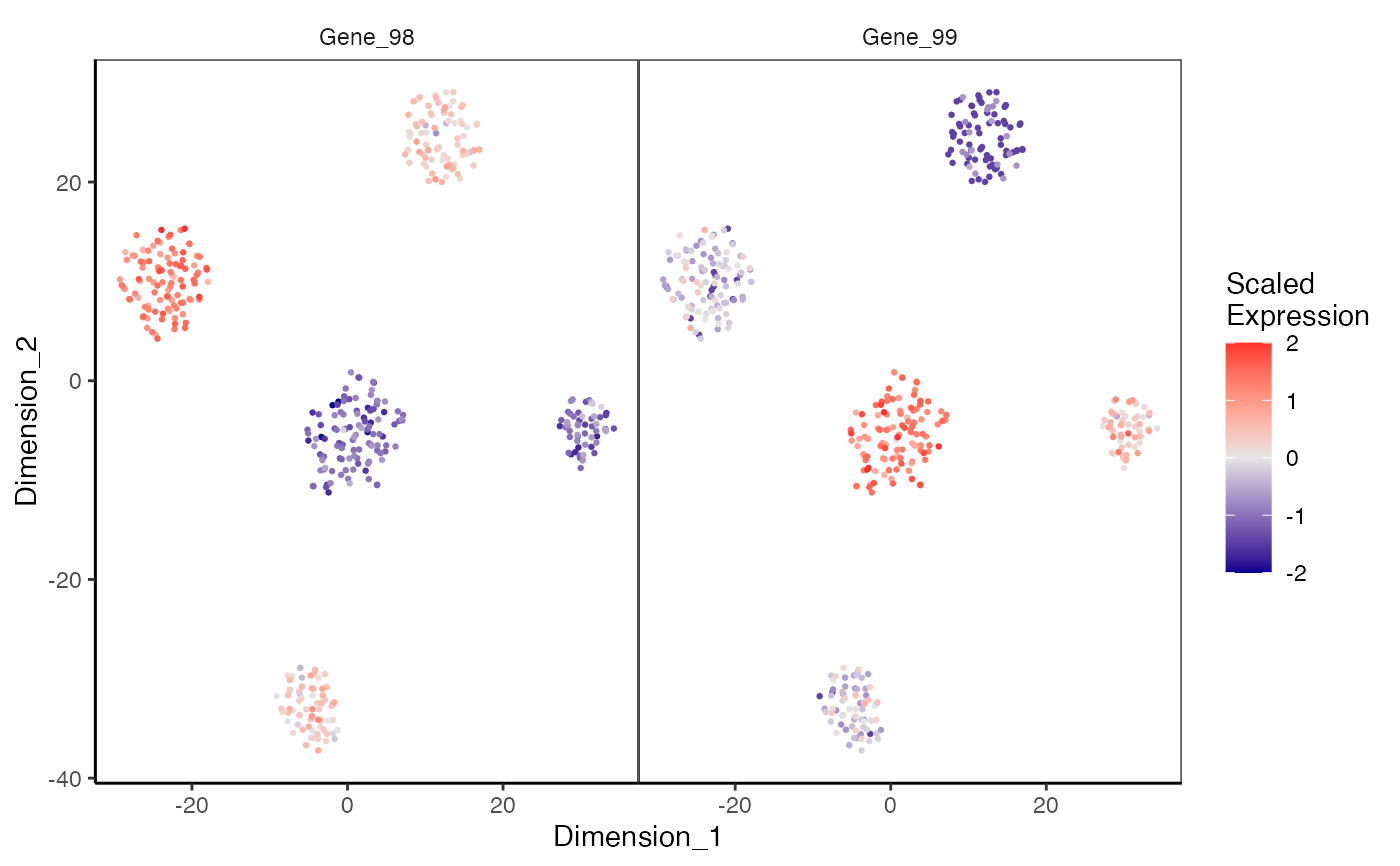

library(SingleCellExperiment)
data(sceCeldaCG)
sce <- celdaTsne(sceCeldaCG)
plotDimReduceFeature(x = counts(sce),
  dim1 = reducedDim(altExp(sce), "celda_tSNE")[, 1],
  dim2 = reducedDim(altExp(sce), "celda_tSNE")[, 2],
  normalize = TRUE,
  features = c("Gene_98", "Gene_99"),
  exactMatch = TRUE)
