Plots for runEmptyDrops outputs.

Source: R/ggPerQCWrapper.R

A wrapper function which visualizes outputs from the runEmptyDrops function stored in the colData slot of the SingleCellExperiment object via plots.

plotEmptyDropsResults(
  inSCE,
  sample = NULL,
  combinePlot = "all",
  fdrCutoff = 0.01,
  defaultTheme = TRUE,
  dotSize = 0.5,
  titleSize = 18,
  axisLabelSize = 18,
  axisSize = 15,
  legendSize = 15,
  legendTitleSize = 16,
  relHeights = 1,
  relWidths = 1,
  samplePerColumn = TRUE,
  sampleRelHeights = 1,
  sampleRelWidths = 1
)

Arguments

inSCE

Input SingleCellExperiment object with saved dimension reduction components or a variable with saved results from runScrublet. Required.
sample

Character vector. Indicates which sample each cell belongs to. Default NULL.
combinePlot

Must be either "all", "sample", or "none". "all" will combine all plots into a single .ggplot object, while "sample" will output a list of plots separated by sample. Default "all".
fdrCutoff

Numeric. Thresholds barcodes based on the FDR values from runEmptyDrops as "Empty Droplet" or "Putative Cell". Default 0.01.
defaultTheme

Removes grid in plot and sets axis title size to 10 when TRUE. Default TRUE.
dotSize

Size of dots. Default 0.5.
titleSize

Size of title of plot. Default 18.
axisLabelSize

Size of x/y-axis labels. Default 18.
axisSize

Size of x/y-axis ticks. Default 15.
legendSize

size of legend. Default 15.
legendTitleSize

size of legend title. Default 16.
relHeights

Relative heights of plots when combine is set.
relWidths

Relative widths of plots when combine is set.
samplePerColumn

If TRUE, when there are multiple samples and combining by "all", the output .ggplot will have plots from each sample on a single column. Default TRUE.
sampleRelHeights

If there are multiple samples and combining by "all", the relative heights for each plot.
sampleRelWidths

If there are multiple samples and combining by "all", the relative widths for each plot.

Value

list of .ggplot objects

Examples

data(scExample, package="singleCellTK")
sce <- runEmptyDrops(inSCE=sce)

#> Thu Dec 23 11:35:16 2021 ... Running 'emptyDrops'

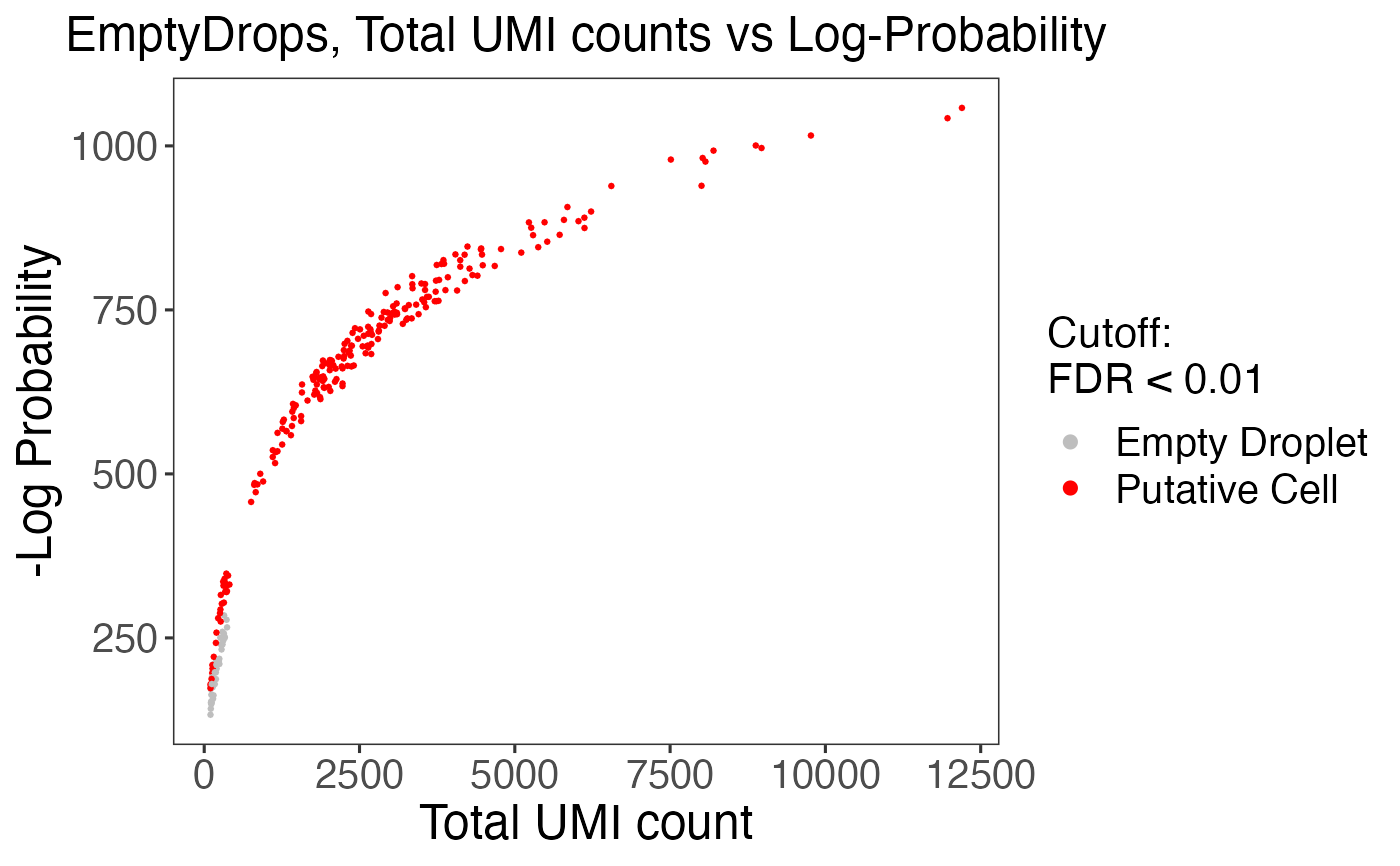

plotEmptyDropsResults(inSCE=sce)

#> $scatterEmptyDrops
#>
