Plots the mutational signatures — plot

After mutational signature discovery has been performed, this function can be used to display the distribution of each mutational signature. The color_variable and color_mapping parameters can be used to change the default color scheme of the bars.

plot_signatures(
  result,
  plotly = FALSE,
  color_variable = NULL,
  color_mapping = NULL,
  text_size = 10,
  show_x_labels = TRUE,
  show_y_labels = TRUE,
  same_scale = TRUE,
  y_max = NULL,
  annotation = NULL
)

Arguments

result: A musica_result object generated by a mutational discovery or prediction tool.
plotly: If TRUE, the the plot will be made interactive using plotly. Default FALSE.
color_variable: Name of the column in the variant annotation data.frame to use for coloring the mutation type bars. The variant annotation data.frame can be found within the count table of the musica object. If NULL, then the default column specified in the count table will be used. Default NULL.
color_mapping: A character vector used to map items in the color_variable to a color. The items in color_mapping correspond to the colors. The names of the items in color_mapping should correspond to the uniqeu items in color_variable. If NULL, then the default color_mapping specified in the count table will be used. Default NULL.
text_size: Size of axis text. Default 10.
show_x_labels: If TRUE, the labels for the mutation types on the x-axis will be shown. Default TRUE.
show_y_labels: If TRUE, the y-axis ticks and labels will be shown. Default TRUE.
same_scale: If TRUE, the scale of the probability for each signature will be the same. If FALSE, then the scale of the y-axis will be adjusted for each signature. Default TRUE.
y_max: Vector of maximum y-axis limits for each signature. One value may also be provided to specify a constant y-axis limit for all signatures. Vector length must be 1 or equivalent to the number of signatures. Default NULL.
annotation: Vector of annotations to be displayed in the top right corner of each signature. Vector length must be equivalent to the number of signatures. Default NULL.

Value

Generates a ggplot or plotly object

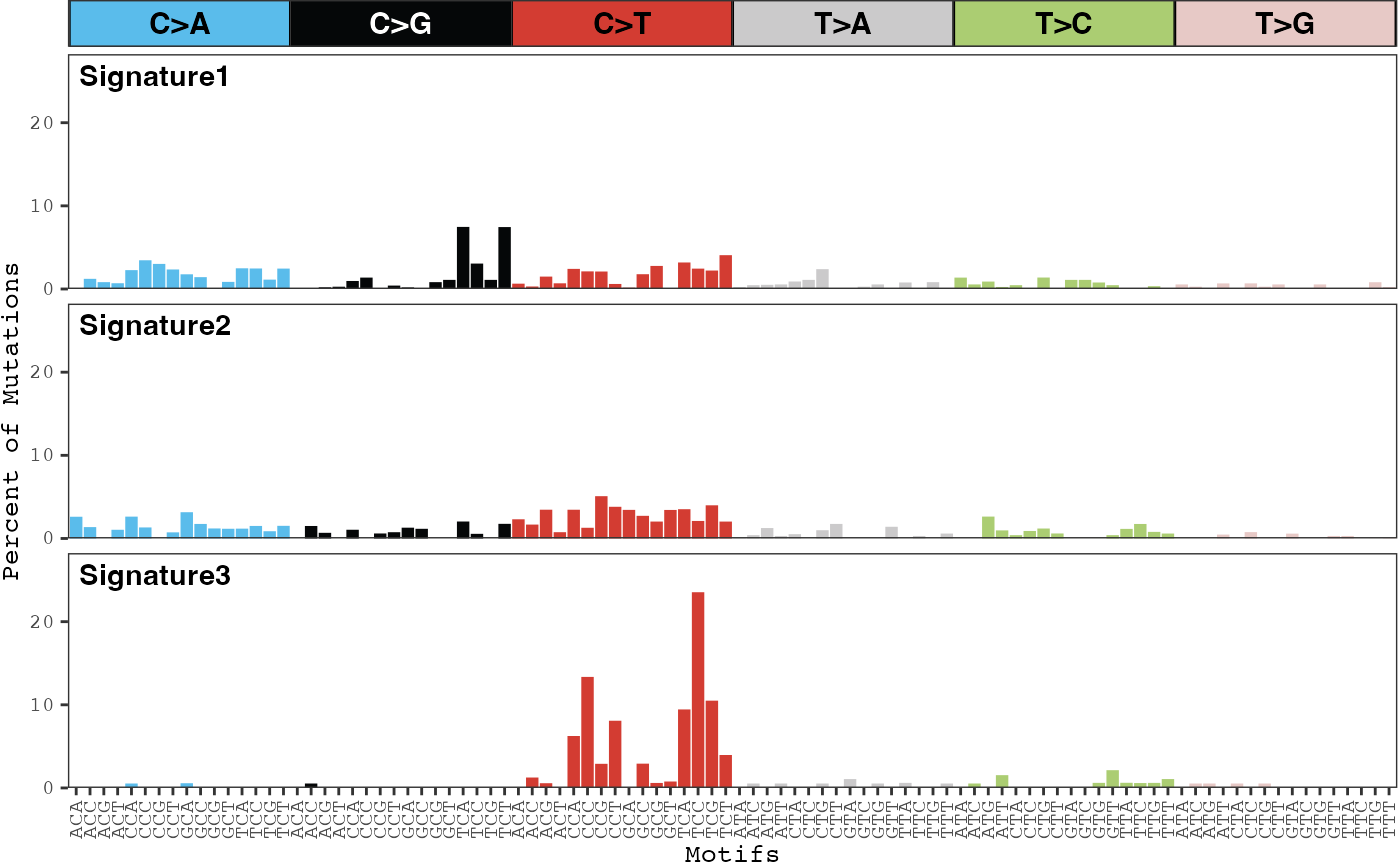

Examples

data(res)
plot_signatures(res)
